Products » Suction & Delivery Hose

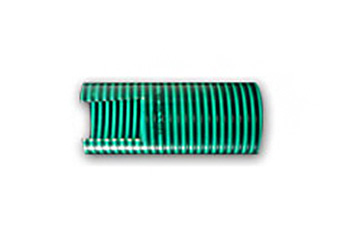

M.D.(Green)

Specifications

Nominal Size		Diameter		Bending Radius	Pressure (at 30°C)		Standard Lengths
Inches	mm	ID mm	OD mm	mm	Working kg/cm²	Bursting kg/cm²	mtrs.
¾	20	19.0 ± 0.5	23.6 ± 1.0	45	7	24	30/50
1	25	25.4 ± 0.5	30.0 ± 1.0	55	7	23	30/50
1¼	30	31.8 ± 0.5	36.8 ± 1.0	75	6.5	20	30/50
1½	40	38.0 ± 0.5	43.3 ± 1.0	95	5	16	30/50
2	50	50.8 ± 0.5	57.8 ± 1.5	122	4	16	30/45/50
2½	65	63.5 ± 1.0	72.0 ± 1.5	160	4	16	30/45
3	75	76.2 ± 1.0	85.0 ± 1.5	272	3.5	15	30/36
4	100	101.2 ± 1.0	112.2 ± 2.0	290	3.5	11	15/18/30

Ideal for Medium Duty Suction & Delivery of water for irrigation purpose in agriculture, saline water, light acids, alkalies and other chemicals except solvents.
